Effective comminution due to highest rotor speed

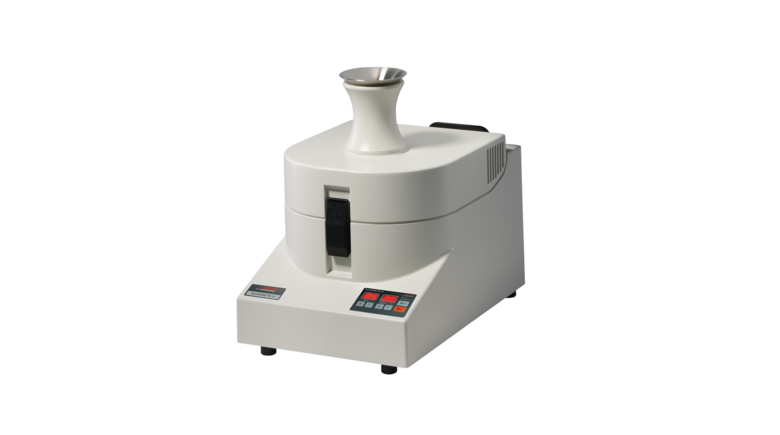

The FRITSCH Variable Speed Rotor Mill PULVERISETTE 14 classic line is the ideal mill for fast, effective comminution of soft to medium-hard, brittle and fibrous materials as well as temperature-sensitive samples – proven worldwide for the use in trace analysis.
Difficult-to-mill samples, or extremely temperature-sensitive samples such as styrenes, polyester, synthetic resins, films, PVC, PP and PE can be embrittled with the addition of liquid nitrogen and afterwards ground in the PULVERISETTE 14 classic line. The motor speed can be varied between 6,000 and 20,000 rpm in increments of one-thousandth - making it possible to adapt the mill to each specific application. An automatic speed compensation feature ensures an ideal adaptation of the grinding to the specific comminution behaviour of the sample. At the same time reduces the fast, effective grinding significantly the thermal strain on the sample.
Inside the Variable Speed Rotor Mill PULVERISETTE 14 classic line, the sample is comminuted by impact on the ribs of the rotor rotating at a high speed and additionally sheared between the rotor-teeth and between the utilized sieve ring.
More powerful frequency converter
With a more powerful frequency converter, the modified Speed Rotor Mill PULVERISETTE 14 classic line ensures that the motor output is precisely matched to the grinding material.
Your advantage: faster sample feeding, a constant rotational speed and a higher throughput. The well-designed LED display in the ergonomic operating panel with membrane keyboard, displays the speed and motor load and alerts in the event of reaching the temperature limit and overload.
Ingenious air routing
Available only from FRITSCH: The ingenious air routing of the PULVERISETTE 14 classic line ensures a constant airflow to cool the rotor, all motor components and the grinding material in the collecting vessel. At the same time, a large fan blows the cooling air into the instrument through a foam particle filter to create positive pressure that prevents the penetration of dirt particles from the ambient air.

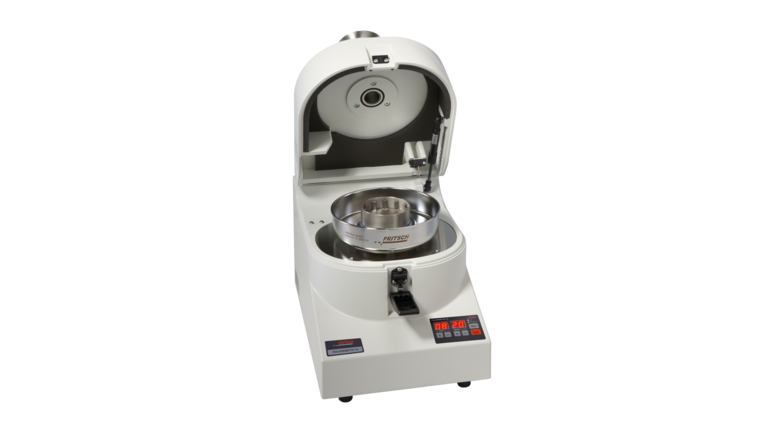

Fast exchange of all grinding tools - easy cleaning
All grinding parts can be removed without tools with just a few motions – for quickly exchanging all grinding parts and for cleaning them outside of the instrument. The especially smooth surface of the stainless steel impact rotors simplifies a thorough cleaning – fast and easy! The wear-free labyrinth seal between the grinding chamber and the motor offers secure protection against contamination of the instrument.
NEW: temperature gentle fine grinding with the FRITSCH Cyclone separators
The combination of the FRITSCH Variable Speed Rotor Mill PULVERISETTE 14 classic line with the FRITSCH Cyclone separators is ideal for ultra-fine grinding of temperature-sensitive samples like powder coatings and plastic samples or for smooth pre-crushing and fine grinding of hard-brittle to soft, fatty or samples with residual moisture. The powerful air vortex within the FRITSCH Cyclone separators in combination with the efficient air cooling of the mill, cools the sample during grinding and draws the sample directly into the screwed on glass sample bottle. Thereby the fine dust is retained in the Cyclone separators by the ultra-fine HEPA dust filter and prevents the clogging of the sieve ring.
The result: a particularly fast and efficient grinding with minimized thermal load at a significantly higher throughput – and a particularly simple contamination-free cleaning.
Two models are available for your application needs: High performance Cyclone separator and a small volume Cyclone separator.
Configure your Variable Speed Rotor Mill PULVERISETTE 14 classic line exactly to your specific application
The Centrifugal Mill PULVERISETTE 14 classic line includes a collecting vessel and lid. In order to operate the mill, you must also order a rotor, a sieve ring, an impact bar or a pin insert - allowing you to select your grinding tools according to your specific application! To ensure this, an extensive accessory programme for the PULVERISETTE 14 classic line is available with rotors and sieve rings in various designs and materials, as well as additional accessories. Choose exactly what you need!
For grinding large quantities we recommend the special conversion kit. This allows the comminution of sample quantities of up to 1 litre in a single step without the need to open the grinding chamber and empty the collecting pan during the process.

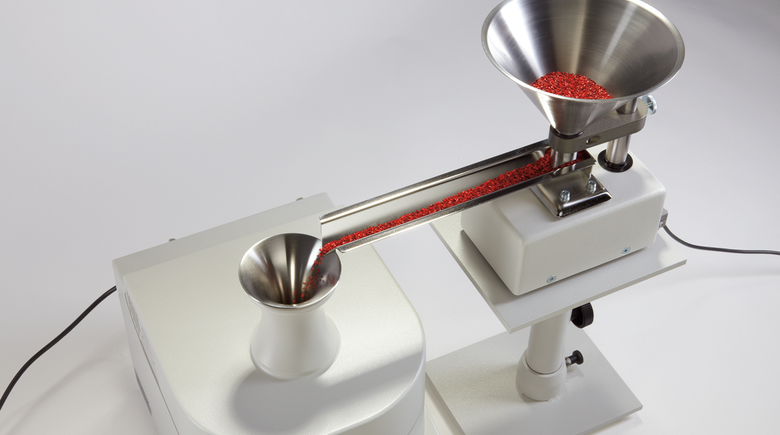

Combine your PULVERISETTE 14 classic line with the FRITSCH Vibratory Feeder LABORETTE 24 to ensure continuous feeding of the sample during the entire grinding process, even of smallest quantities. Due to a direct connection, the mill automatically matches the sample feeding to its load state at any given moment.
