Cutting Mill PULVERISETTE 15




AT A GLANCE

  • Rotor speed up to 3400 rpm
  • Collecting vessel 3.5 litres or 60 litres
  • Externally adjustable cutting gap
  • Stable operation due to double rotor bearing
  • Rotor knives can be turned, double service life

IDEAL FOR

  • PLASTICS AND TEXTILES
  • AGRICULTURE AND FORESTRY
  • ENVIRONMENT
  • ROHS
  • ANALYTIC
  • CONSTRUCTION MATERIALS
  • CHEMISTRY
  • FOOD STUFFS
  • OVERVIEW

    For a wide range of common applications

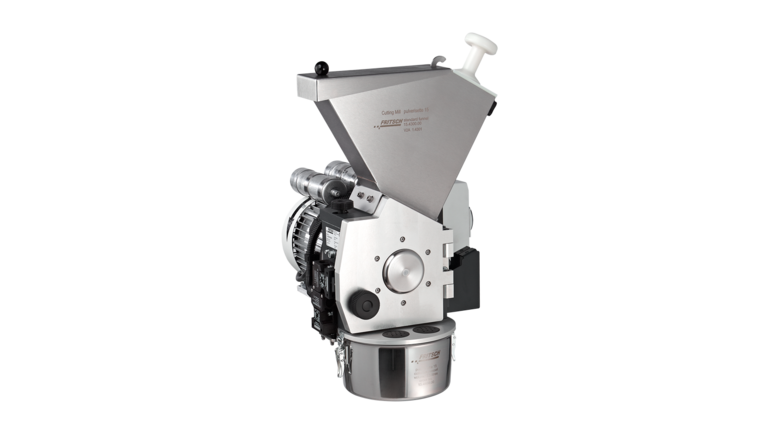

    The FRITSCH Cutting Mill PULVERISETTE 15 is ideal for the comminution of dry sample materials with soft to medium-hard consistency, for fibrous materials or cellulosic materials, as well as for sample preparation according to RoHS with a feed size of 70 x 70 mm and a throughput quantity of up to 50l/h. A cutting rotor speed of up to 3400 rpm ensures a high air throughput, fast processing and reproducible results.
    The simple FRITSCH cleaning makes your work much easier.

  • WORKING PRINCIPLE

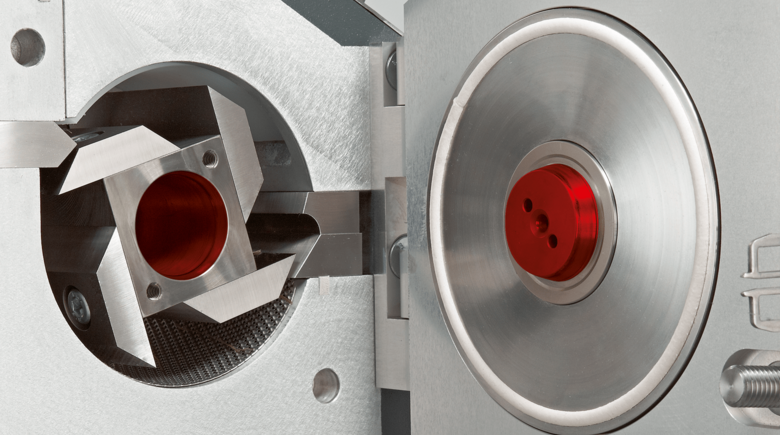

    Unique grinding chamber geometry

    In Cutting Mills, the sample is comminuted according to the cutting principle of scissors, increasingly fine between the knives of the rotor and fixed knives until the desired final fineness is achieved.
    Unique grinding chamber geometry: The grinding chamber is designed with minimal dead space and progressive cutting geometry between rotor and fixed knives. The sample material is continuously moved during comminution and cannot settle anywhere. In conjunctions with the special air flow, this is the basis for swift, blockage-free operation and fast cleaning without residue.

  • FEATURES
    • Fast, reproducible size reduction due to high cutting rotor speed of up to 3400 rpm
    • Max. feed size 70 x 70 mm
    • Throughput quantity of up to 50 l/h
    • Defined final fineness replaceable sieve inserts – 0.25 – 20 mm
    • Collecting vessel 3.5 litres or 60 litres
    • Funnel for long- and bulk solids or protected funnel made of stainless steel with plastic sample pusher
    • Housing and closing lid can be lifted to open completely – lid completely removable
    • Externally adjustable cutting gap
    • Rotor knives can be turned (2 cutting edges) – double service life
    • Very stable: the rotor with double bearing on shaft and in the lid.
    • Especially easy FRITSCH cleaning
    • Optimum airflow for particularly fast size reduction and secure protection against clogging
    • Extensive accessories for simplifying your daily work

    View extensive accessories

  • EQUIPMENT / ACCESSORIES

    Configure your Cutting Mill PULVERISETTE 15 exactly to your specific application

    The Cutting Mill PULVERISETTE 15 is delivered without funnel, cutting tool set (consisting of rotors and fixed knives), sieve inserts, collection vessel and stand. Various funnels, collection vessels, rotors with fixed knives, sieve inserts and a support stand enable you to configure the Cutting Mill exactly for your application.

    View extensive accessories
