Particle Sizer

ANALYSETTE 28

ImageSizer

订货号
28.2000.00
产品详情



AT A GLANCE

  • Dry measurement of powders and bulk solids - measuring range 20 μm – 20 mm
  • Wet measurement of suspensions and emulsions – measuring range 5 µm – 3 mm
  • High-performance camera with telecentric lenses
  • State-of-the-art evaluation with the ImageSizing-Software ISS
Ideal for
  • ANALYSIS OF PARTICLE SHAPE AND SIZE
  • POWDERS AND BULK SOLIDS
  • EMULSIONS AND SUSPENSIONS
  • QUALITY CONTROL
  • RESEARCH AND LABORATORY
  • FAST ALTERNATIVE TO SIEVE ANALYSIS
  • OVERVIEW

    The ANALYETTE 28 ImageSizer is the ideal Particle Sizer for all applications that require accurate and reproducible measuring results for both particle shape and size of powders and bulk solids as well as of suspensions and emulsions.

    The optical process of Dynamic Image Analysis provides results for a wide measuring range, delivers multiple shape parameters and evaluation possibilities for particle size. The measuring time depending on the sample quantity, is under 5 minutes. And the result is available immediately.

  • Typical areas of application

    Ideal for the analysis of: fertilisers, refractory products, glass and ceramics, carbon products, catalysts, plastics, foodstuffs, metals and ores, pharmaceutical products, carbon black and coal, salts, sand, abrasives and cements.
    Also for fast, safe and uncomplicated quality control, research and laboratories – and is a very easy and cost-effective alternative to sieving.

  • STRONG CAMERA AND LENSES FOR HIGHEST MEASUREMENT PRECISION

    One-camera-system with 5 megapixels
    With only one high-performance industrial camera, the ANALYSETTE 28 ImageSizer covers an extremely wide measuring range and ensures thanks to its 5 megapixels, highest resolution of even smallest particles. Your advantage: In one image, large and small particles can be directly captured, displayed, edited and deleted. And a direct USB connection to the computer ensures the fastest possible data transmission for evaluation of the results. And the duration of the measurement can be varied depending on the desired number of images (up to 75 images/sec.) or on the number of measured particles.

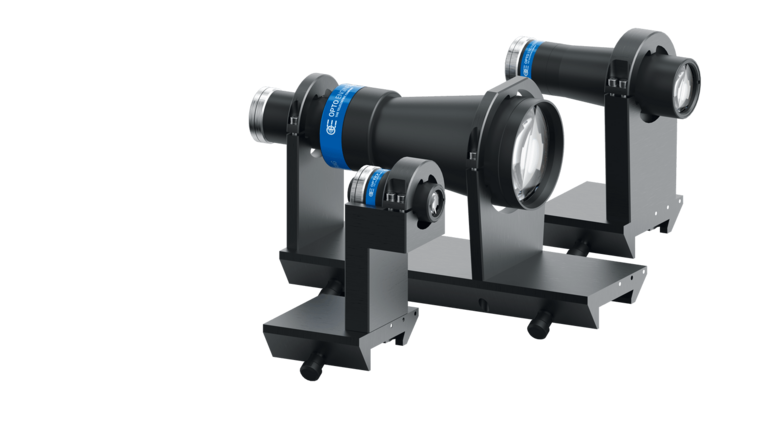

    Heavy-duty for all applications
    Even the lenses are optimised for industrial utilization: With a simple, heavy-duty design, and hermetically sealed against dust and moisture, a precise opto-mechanical setting and high optical performance are ensured at any time.

    Homogeneous illumination
    The extra strong LED lighting guarantees a homogeneous illumination of the image field for perfect measurements. The flexibly adjustable exposure time ensures optimal adaptation to the sample and can easily be saved in the SOP.

  • AUTOMATIC ANALYSIS DUE TO SOPs

    Open configuration of the measuring process via SOPs
    The ANALYSETTE 28 ImageSizer software contains predefined Standard Operating Procedures (SOPs) for typical measurement tasks, making operation especially easy. In the SOP you can set for example the parameters for the feeder, the dispersion and the camera. Own SOPs can also be created according to the measurement requirements and retrieved at any time via an input mask. Your advantage: a completely free configuration of the entire measuring process – for a simple and reliable reproducibility of the measuring process.

  • Features
    • Extra-wide measuring range, individually adjustable
    • Variable measuring time - below 5 minutes
    • High-performance camera with telecentric lenses
    • Fast, simple operation via SOP control
    • High-performance, integrated image analysis software ISS
    • Extensive library for morphological analysis
    • Useful tools for reliable quality monitoring
    • Practical report generator for individual presentation of results
    • Meets the requirements of ISO 13322-2 for Dynamic Image Analysis
  • SIMPLE AND FAST EVALUATION

    State-of-the-art evaluation with the ImageSizing-Software ISS
    The evaluation of the measuring results is uniquely simple with the ANALYSETTE 28 ImageSizer. The ImageSizing-Software ISS displays each recorded particle clearly as a data point in the immediately available FRITSCH Cloud as well as in the FRITSCH Gallery. You freely choose which statement is of interest to you: for example the Sphericity in regards to the Minimum Feret Diameter, the aspect ratio, applied on the porosity, or the convexity as a function of the particle Cross Section.

    Additional information about the FRITSCH Cloud and Gallery

  • DYNAMIC IMAGE ANALYSIS INSTEAD OF A MICROSCOPE

    With the principle of Dynamic Image Analysis, the ANALYSETTE 28 ImageSizer offers all benefits of an analysis via microscope, but records due to the fully automatic process with up to 75 images per second a considerably higher number of particles. Instead of just one image, any freely definable number of images can be recorded and evaluated. You can see the result of the analysis directly without any complicated evaluation just like with a microscope. Your advantage: Faster, representative results and higher precision in evaluation.

  • RELIABLE QUALITY CONTROL

    Ensure higher quality, reduced rejects and lower costs: fast, safe and uncomplicated by measuring particle shape and size. With short measuring times of less than 5 minutes and reliable reproducibility thanks to pixel-accurate evaluation. For always consistent results. Just add the sample, start your measurement and read the evaluation!

  • FAST ALTERNATIVE TO SIEVING

    If you conduct many and frequent sieve analyses, the ANALYSETTE 28 ImageSizer is the ideal, time-saving alternative completely without weighing, assembling of a sieve stack and time-consuming cleaning. And with substantially reduced follow-up costs, as there is no need to calibrate or purchase new sieves. And additionally, you receive besides the particle size distribution, also valuable information about the particle shape.

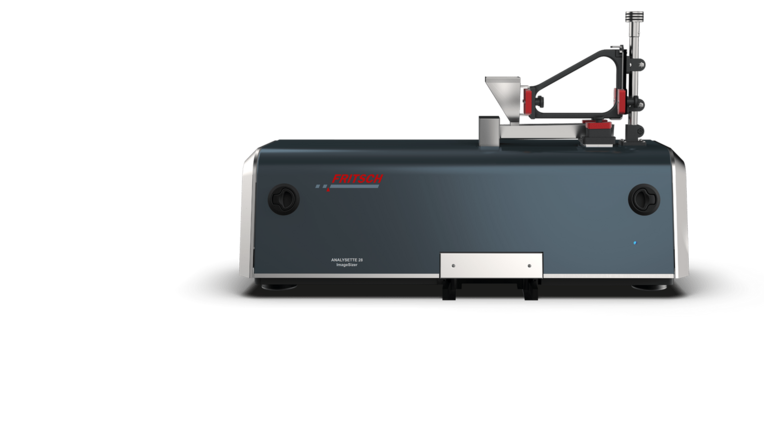

  • Efficient dry measurement of powders and bulk solids

    The ANALYSETTE 28 ImageSizer is the ideal Particle Sizer for fast analysis of particle shape and size of dry, free-flowing materials.

    Additional information about DRY MEASUREMENT

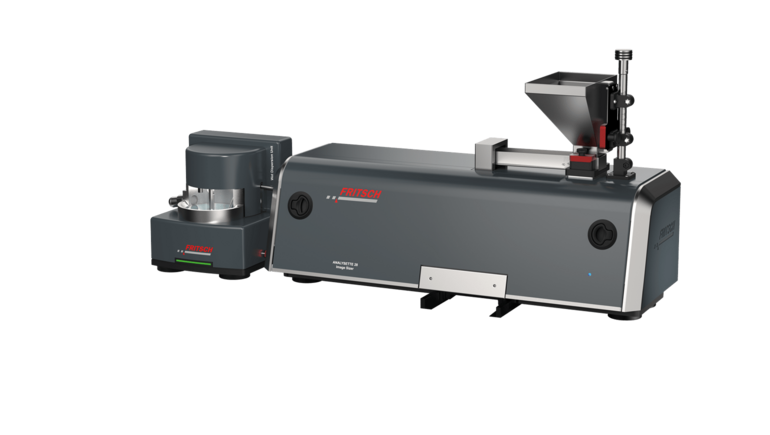

  • Easy wet measurement of suspensions and emulsions

    The ANALYSETTE 28 ImageSizer is in combination with the corresponding wet dispersion unit, ideal for measurement of particle shape and size of suspensions and emulsions.

    Additional information about WET MEASUREMENT

  • Equipment

    We make it very easy for you: The ANALYSETTE 28 ImageSizer with USB-Interface, is delivered with a computer* with already installed ImageSizing-Software ISS, monitor, keyboard and mouse.

    Please select according to your task:

    For dry measurement: please order lenses according to the desired measuring range.
    For wet measurement: please order wet dispersion unit, lenses according to the desired measuring range and if required the ultrasonic box separately.
    Select accessories for dry or wet measurement

    Maintenance and Recalibration of your Particle Sizer on request. Colour ink jet printer and laser printer on request.

    *without computer hardware for deliveries to CIS countries
  • APPLICATIONS / SOLUTIONS
    Fritsch Particle Sizer Analysette 28 ImageSizer for applicationsfor reproducible measuring results for particle shape and size
    Particle Sizer Analysette 28 ImageSizer

    A flood of images for particle size analyis

    Images are beautiful. Images are intuitive. Images are meaningful. These are already some of the main advantages of Dynamic Image Analysis.

    READ MORE
