Planetary Micro Mill

PULVERISETTE 7

classic line

订货号
07.4000.00
配件

Please note: For the Planetary Micro Mill PULVERISETTE 7 classic line, you require at least 2 grinding bowls of your choice and the corresponding number of grinding balls. The grinding bowl material must also be harder than the material to be ground. In normal cases, grinding bowls and balls of the same material are used. To shorten the grinding time, grinding bowls and balls with a higher density and correspondingly higher impact energy can be used. Please take note of the useful capacity, this is not identical with the bowl volume!

GRINDING BOWLS

选项帮助

  • Material data for grinding bowls / balls

    Material Main component of the material Density g/cm³ Abrasion resistance Used for grinding material
    Agate SiO2 2.65 good soft to medium-hard samples
    Sintered corundum Al2O3(99.7 %) 3.8 moderately good medium-hard, fibrous samples
    Silicon nitride Si3N4 3.25 extremely good abrasive samples, metal-free grinding
    Zirconium oxide ZrO2 5.7 very good fibrous, abrasive samples
    Hardened, stainless steel Fe – Cr - Ni 7.7 good hard, medium-hard, brittle samples
    Hardmetal tungsten carbide WC 14.3 very good hard, abrasive samples
    Polypropylene 0.9 sufficient for homogenisation
  • Recommended number of balls per grinding bowl

    Grinding balls ≥ 5 mm
    Recommended number of balls per bowl
    Grinding bowl/
    Useful capacity (grinding material)
    12 ml
    0,5 – 5 ml
    45 ml
    3 – 20 ml
    Balls diameter
    15 mm 7
    10 mm 6 18
    5 mm 50 180
    Grinding balls ≤ 3 mm
    Recommended ball mass per grinding bowl in grams
    Grinding bowl/
    Useful capacity (grinding material)
    12 ml
    0.5 - 5 ml
    45 ml
    3 - 20 ml
    Material
    Zirconium oxide 20 g 70 g
    Hardened, stainless steel 30 g 90 g
    Hardmetal tungsten carbide 50 g 200 g
  • Additional Information

    Grinding balls with diameter 3 mm and smaller must be weighed out. The above table provides you with the necessary weight to be included per grinding bowl.

    The specified ball filling per bowl is the minimum quantity and should possibly be increased depending on the material properties. The useful capacity depends on the type of material. In exceptional cases, the number of grinding balls can be reduced by up to 15 %. However, increased abrasion should be expected. In general, smaller grinding balls achieve finer grinding results.

    In normal cases, grinding bowls and balls of the same material are used. To shorten the grinding time, grinding bowls and balls with a higher density and correspondingly higher impact energy can be used.

Please select 2 grinding bowls, which are offered in the sizes 45 ml and 12 ml to perfectly match your sample volume. The useful capacity of the grinding bowls can be found in the selection aid.
For the best grinding results in each individual case, all grinding bowls are available in 7 different materials, thus directly preventing contamination of the samples as a result of undesired abrasion.

SELECT GRINDING BOWL VOLUME

GRINDING BOWL 45 ML VOLUME

agate - SiO2
号码 50.7050.00
agate with lid and seal ring <i>classic line</i>

Grinding bowl with lid and seal ring
Grinding bowl volume: 45 ml
Useful capacity: 3 … 20 ml
Weight net: 0.300 kg
General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard samples
Detailed information about the material you will find in the element analysis.


指示性分析
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
sintered corundum - 99.7% Al2O3
号码 50.7060.00
sintered corundum with lid and seal ring<i>classic line</i>

Grinding bowl with lid and seal ring
Grinding bowl volume: 45 ml
Useful capacity: 3 … 20 ml
Weight net: 0.350 kg
General material specification:
Material: sintered corundum 1 - 99.7 % Al2O3
Abrasion resistance: fairly good
Suitable for: medium-hard, fibrous samples
Detailed information about the material you will find in the element analysis.


指示性分析
General specifications
MaterialSintered corundum 1 – Al2O3
ISO/EN/DIN code
Chemical composition
ElementShare %
Aluminium oxide – Al2O399.651
Silicon oxide – SiO20.257
Calcium oxide – CaO0.081
Other0.011
Physical and mechanical properties
Density3.8 g/cm³
Hardness18.000N/mm² (Vickers HV 0.5)


Explanations on hardness data
silicon nitride - Si3N4
号码 50.7310.00
silicon nitride with lid and seal ring <i>classic line</i>

Grinding bowl with lid and seal ring
Grinding bowl volume: 45 ml
Useful capacity: 3 … 20 ml
Weight net: 0.350 kg
General material specification:
Material: silicon nitride - Si3N4
Abrasion resistance: excellent
Suitable for: abrasive samples, metal-free grinding
Detailed information about the material you will find in the element analysis.


指示性分析
General specifications
MaterialSilicon nitride - Si3N4
ISO/EN/DIN codeSNCB5
Chemical composition
ElementShare %
Al2 O3 Y2 O39
Si3 N491
Physical and mechanical properties
Density3.25 g/cm³
Hardness91.1 HRA


Explanations on hardness data
zirconium oxide - ZrO2
号码 50.7110.00
zirconium oxide with lid and seal ring <i>classic line</i>

Grinding bowl with lid and seal ring
Grinding bowl volume: 45 ml
Useful capacity: 3 … 20 ml
Weight net: 0.500 kg
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Detailed information about the material you will find in the element analysis.


指示性分析
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
号码 50.7090.00
hardened, stainless steel with lid and seal ring <i>classic line</i>

Grinding bowl with lid and seal ring
Grinding bowl volume: 45 ml
Useful capacity: 3 … 20 ml
Weight net: 0.700 kg
General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Detailed information about the material you will find in the element analysis.


指示性分析
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC - with steel casing
号码 50.7080.00
hardmetal tungsten carbide with steel casing, lid and seal ring <i>classic line</i>

Grinding bowl with lid and seal ring
Grinding bowl volume: 45 ml
Useful capacity: 3 … 20 ml
Weight net: 1.100 kg
General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Detailed information about the material you will find in the element analysis.


指示性分析
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC93.8
Cobalt – Co 6.0
Other0.2
Physical and mechanical properties
Density14.95 g/cm³
Hardness92.1 HRA


Explanations on hardness data

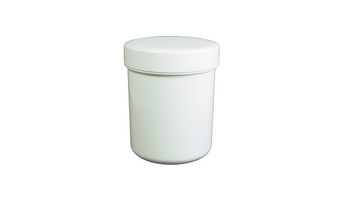

polypropylene disposable bowl
号码 50.7200.00
polypropylene disposable bowl <i>classic line</i>

Disposable bowl with screw lid
Grinding bowl volume: 45 ml
Useful capacity: 3 … 20 ml
Weight net: 0.013
General material specification:
Material: polypropylene - PP
Suitable for: homogenisation
Density: 0.895 - 0.92 g/cm³


bowl adapter for polypropylene disposable bowl
号码 07.3280.13
bowl adapter for Polypropylene disposable bowl <i>classic line</i>

Bowl adapter made of aluminium to insert the disposable bowl with screw cap made of polypropylene for homogenisation.


REPLACEMENT SEAL RING PTFE FOR GRINDING BOWLS 45 ML VOLUME

replacement seal ring for all grinding bowls
号码 50.7250.20
replacement seal ring for all grinding bowls of 45 ml volume <i>classic line</i>

Replacement seal ring made of PTFE, 50/40 mm dia. for all grinding bowls 45 ml volume.


指示性分析
General specifications
Material PTFE
CAS Number9002-84-0
Chemical composition
ElementFormula
PolytetrafluoroethyleneC 2F4
Melting point327° C
Max. application temp. constant260° C
Max. application temp. briefly300° C
Physical and mechanical properties
Density2.16 g /cm³
Ball pressure hardness ISO 868, ISO 2039-2, D 55 Shore

GRINDING BOWL 12 ML VOLUME

agate - SiO2
号码 50.5050.00
agate with lid and seal ring <i>classic line</i>

Grinding bowl with lid and seal ring
Grinding bowl volume: 12 ml
Useful capacity: 0.5 … 5 ml
Weight net: 0.150 kg
General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard samples
Detailed information about the material you will find in the element analysis.


指示性分析
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
sintered corundum - 99.7% Al2O3
号码 50.5060.00
sintered corundum with lid and seal ring <i>classic line</i>

Grinding bowl with lid and seal ring
Grinding bowl volume: 12 ml
Useful capacity: 0.5 … 5 ml
Weight net: 0.250 kg
General material specification:
Material: sintered corundum 1 - 99.7 % Al2O3
Abrasion resistance: fairly good
Suitable for: medium-hard, fibrous samples
Detailed information about the material you will find in the element analysis.


指示性分析
General specifications
MaterialSintered corundum 1 – Al2O3
ISO/EN/DIN code
Chemical composition
ElementShare %
Aluminium oxide – Al2O399.651
Silicon oxide – SiO20.257
Calcium oxide – CaO0.081
Other0.011
Physical and mechanical properties
Density3.8 g/cm³
Hardness18.000N/mm² (Vickers HV 0.5)


Explanations on hardness data
silicon nitride - Si3N4
号码 50.5310.00
silicon nitride with lid and seal ring <i>classic line</i>

Grinding bowl with lid and seal ring
Grinding bowl volume: 12 ml
Useful capacity: 0.5 … 5 ml
Weight net: 0.200 kg
General material specification:
Material: silicon nitride - Si3N4
Abrasion resistance: excellent
Suitable for: abrasive samples, metal-free grinding
Detailed information about the material you will find in the element analysis.


指示性分析
General specifications
MaterialSilicon nitride - Si3N4
ISO/EN/DIN codeSNCB5
Chemical composition
ElementShare %
Al2 O3 Y2 O39
Si3 N491
Physical and mechanical properties
Density3.25 g/cm³
Hardness91.1 HRA


Explanations on hardness data
zirconium oxide - ZrO2
号码 50.5110.00
zirconium oxide with lid and seal ring<i>classic line</i>

Grinding bowl with lid and seal ring
Grinding bowl volume: 12 ml
Useful capacity: 0.5 … 5 ml
Weight net: 0.400 kg
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Detailed information about the material you will find in the element analysis.


指示性分析
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
号码 50.5090.00
hardened, stainless steel with lid and seal ring <i>classic line</i>

Grinding bowl with lid and seal ring
Grinding bowl volume: 12 ml
Useful capacity: 0.5 … 5 ml
Weight net: 0.500 kg
General material specification:
Material: hardened, stainless steel - Fe - Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Detailed information about the material you will find in the element analysis.


指示性分析
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC
号码 50.5080.00
hardmetal tungsten carbide with lid and seal ring<i>classic line</i>

Grinding bowl with lid and seal ring
Grinding bowl volume: 12 ml
Useful capacity: 0.5 … 5 ml
Weight net: 1.000 kg
General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Detailed information about the material you will find in the element analysis.


指示性分析
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

REPLACEMANT SEAL RING FOR GRINDING BOWL 12 ML VOLUME

replacement seal ring PTFE, 37/26 mm dia. for all grinding bowls 12 ml volume
号码 50.5250.20
replacement seal ring for all grinding bowls 12 ml volume <i>classic line</i>

Replacement seal ring made of PTFE, 37/26 mm dia. for all grinding bowls 12 ml volume.


指示性分析
General specifications
Material PTFE
CAS Number9002-84-0
Chemical composition
ElementFormula
PolytetrafluoroethyleneC 2F4
Melting point327° C
Max. application temp. constant260° C
Max. application temp. briefly300° C
Physical and mechanical properties
Density2.16 g /cm³
Ball pressure hardness ISO 868, ISO 2039-2, D 55 Shore

GRINDING BALLS

选项帮助

  • Material data for grinding bowls / balls

    Material Main component of the material Density g/cm³ Abrasion resistance Used for grinding material
    Agate SiO2 2.65 good soft to medium-hard samples
    Sintered corundum Al2O3(99.7 %) 3.8 moderately good medium-hard, fibrous samples
    Silicon nitride Si3N4 3.25 extremely good abrasive samples, metal-free grinding
    Zirconium oxide ZrO2 5.7 very good fibrous, abrasive samples
    Hardened, stainless steel Fe – Cr - Ni 7.7 good hard, medium-hard, brittle samples
    Hardmetal tungsten carbide WC 14.3 very good hard, abrasive samples
    Polypropylene 0.9 sufficient for homogenisation
  • Size of the grinding balls

    Type of sample material Suitable ball diameter
    Hard samples with a maximum feed size of ≤ 5 mm 15 mm or 10 mm
    Fine material 0.5 mm 10 mm or smaller
    Homogenisation of dry or liquid samples 10 mm or smaller
  • Recommended number of balls per grinding bowl

    Grinding balls ≥ 5 mm
    Recommended number of balls per bowl
    Grinding bowl/
    Useful capacity (grinding material)
    12 ml
    0,5 – 5 ml
    45 ml
    3 – 20 ml
    Balls diameter
    15 mm 7
    10 mm 6 18
    5 mm 50 180
    Grinding balls ≤ 3 mm
    Recommended ball mass per grinding bowl in grams
    Grinding bowl/
    Useful capacity (grinding material)
    12 ml
    0.5 - 5 ml
    45 ml
    3 - 20 ml
    Material
    Zirconium oxide 20 g 70 g
    Hardened, stainless steel 30 g 90 g
    Hardmetal tungsten carbide 50 g 200 g
  • Additional Information

    Grinding balls with diameter 3 mm and smaller must be weighed out. The above table provides you with the necessary weight to be included per grinding bowl.

    The specified ball filling per bowl is the minimum quantity and should possibly be increased depending on the material properties. The useful capacity depends on the type of material. In exceptional cases, the number of grinding balls can be reduced by up to 15 %. However, increased abrasion should be expected. In general, smaller grinding balls achieve finer grinding results.

    In normal cases, grinding bowls and balls of the same material are used. To shorten the grinding time, grinding bowls and balls with a higher density and correspondingly higher impact energy can be used.

For achieving best grinding results grinding balls are available in 0.1 - 15 mm diameters and in 6 different materials, thus directly preventing contamination of the samples as a result of undesired abrasion. The recommended number of balls per grinding bowl can be found in the selection aid.

SELECT THE GRINDING BALL DIAMETER

GRINDING BALLS 15 MM DIAMETER FOR GRINDING BOWLS 45 ML

agate - SiO2 - polished
号码 55.0150.05
Grinding ball agate 15 mm dia., polished

General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard sample


指示性分析
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
sintered corundum - 99.7% Al2O3
号码 55.0150.06
Grinding ball sintered corundum, 15 mm dia.

General material specification:
Material: sintered corundum 1 - 99.7 % Al2O3
Abrasion resistance: fairly good
Suitable for: medium-hard, fibrous samples


指示性分析
General specifications
MaterialSintered corundum 1 – Al2O3
ISO/EN/DIN code
Chemical composition
ElementShare %
Aluminium oxide – Al2O399.651
Silicon oxide – SiO20.257
Calcium oxide – CaO0.081
Other0.011
Physical and mechanical properties
Density3.8 g/cm³
Hardness18.000N/mm² (Vickers HV 0.5)


Explanations on hardness data
silicon nitride - Si3N4
号码 55.0150.31
Grinding ball silicon nitride, 15 mm dia.

General material specification:
Material: silicon nitride - Si3N4
Abrasion resistance: excellent
Suitable for: abrasive samples, metal-free grinding


指示性分析
General specifications
MaterialSilicon nitride - Si3N4
ISO/EN/DIN codeSNCB5
Chemical composition
ElementShare %
Al2 O3 Y2 O312.5
Si3 N486.5
Other1.00
Physical and mechanical properties
Density3.25 g/cm³
Hardness91.1 HRA


Explanations on hardness data
zirconium oxide - ZrO2
号码 55.0150.27
Grinding ball zirconium oxide, 15 mm dia.

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples


指示性分析
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
号码 55.0150.09
Grinding ball hardened, stainless steel, 15 mm dia.

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: medium-hard, brittle samples


指示性分析
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC
号码 55.0150.08
Grinding ball hardmetal tungsten carbide, 15 mm dia.

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples


指示性分析
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

GRINDING BALLS 10 MM DIAMETER FOR GRINDING BOWLS 45 ML, 12 ML

agate - SiO2 - polished
号码 55.0100.05
Grinding ball agate 10 mm dia., polished

General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard sample
Grinding balls made of agate with 10 mm dia. are also recommended as sieving aid for dry sieving of material with a high proportion of fine particles.
Recommended number per sieve: 10 pieces.


指示性分析
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
sintered corundum - 99.7% Al2O3
号码 55.0100.06
Grinding ball sintered corundum, 10 mm dia.

General material specification:
Material: sintered corundum 1 - 99.7 % Al2O3
Abrasion resistance: fairly good
Suitable for: medium-hard, fibrous samples


指示性分析
General specifications
MaterialSintered corundum 1 – Al2O3
ISO/EN/DIN code
Chemical composition
ElementShare %
Aluminium oxide – Al2O399.651
Silicon oxide – SiO20.257
Calcium oxide – CaO0.081
Other0.011
Physical and mechanical properties
Density3.8 g/cm³
Hardness18.000N/mm² (Vickers HV 0.5)


Explanations on hardness data
silicon nitride - Si3N4
号码 55.0100.31
Grinding ball silicon nitride, 10 mm dia.

General material specification:
Material: silicon nitride - Si3N4
Abrasion resistance: excellent
Suitable for: abrasive samples, metal-free grinding


指示性分析
General specifications
MaterialSilicon nitride - Si3N4
ISO/EN/DIN codeSNCB5
Chemical composition
ElementShare %
Al2 O3 Y2 O312.5
Si3 N486.5
Other1.00
Physical and mechanical properties
Density3.25 g/cm³
Hardness91.1 HRA


Explanations on hardness data
zirconium oxide - ZrO2
号码 55.0100.27
Grinding ball zirconium oxide, 10 mm dia.

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples


指示性分析
General specifications
MaterialZirconium oxide - ZrO2
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.2 - 95.2
Hafnium oxide – HfO21 - 2
Magnesium oxide – MgO3.5
Silicon dioxide – SiO20.1
Aluminium oxide – Al2O30.1
Other0.1
Physical and mechanical properties
Density5.7 g/cm³
Hardness Vickers 1200 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
号码 55.0100.09
Grinding ball hardened, stainless steel, 10 mm dia.

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples


指示性分析
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC
号码 55.0100.08
Grinding ball hardmetal tungsten carbide, 10 mm dia.

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples


指示性分析
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

GRINDING BALLS 5 MM DIAMETER FOR GRINDING BOWLS 45 ML, 12 ML

agate - SiO2 - polished
号码 55.0050.05
Grinding ball agate, 5 mm dia., polished

General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard sample
100 grinding balls made of agate with 5 mm dia. weigh approx. 17 g. With the weight information, the high number of balls per grinding bowl can be determined by weighing.
Grinding balls made of agate with 5 mm dia. are also recommended as sieving aid for dry sieving of material with a high proportion of fine particles.
Recommended number per sieve: 15 pieces.


指示性分析
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
zirconium oxide - ZrO2
号码 55.0050.27
Grinding ball zirconium oxide, 5 mm dia.

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
100 grinding balls made of zirconium oxide with 5 mm dia. weigh approx. 38 g.
With the weight information, the high number of balls per grinding bowl can be determined by weighing.


指示性分析
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
hardened, stainless steel - Fe - Cr
号码 55.0050.09
Grinding ball hardened, stainless steel, 5 mm dia.

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
100 grinding balls made of hardened, stainless steel with 5 mm dia. weigh approx. 52 g.
With the weight information, the high number of balls per grinding bowl can be determined by weighing.


指示性分析
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC
号码 55.0050.08
Grinding ball hardmetal tungsten carbide, 5 mm dia.

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
100 grinding balls made of hardmetal tungsten carbide with 5 mm dia. weigh approx. 97 g. With the weight information, the high number of balls per grinding bowl can be determined by weighing.


指示性分析
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

GRINDING BALLS ≤ 3 MM DIAMETER FOR GRINDING BOWLS 45 ML, 12 ML (100 G PACKAGE)

3 mm dia. zirconium oxide ZrO2
号码 55.0030.27
Grinding balls zirconium oxide 3 mm dia. (100 g pack)

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 3 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


指示性分析
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
2 mm dia. zirconium oxide ZrO2
号码 55.0020.27
Grinding balls zirconium oxide 2 mm dia. (100 g pack)

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 2 mm dia. are packed in 100 g units and must be weight out. In the selection aid you can find the required mass per grinding bowl.


指示性分析
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
1.5 mm dia. zirconium oxide ZrO2
号码 55.0015.27
Grinding balls zirconium oxide 1.5 mm dia. (100 g pack)

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 1.5 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


指示性分析
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
1 mm dia. zirconium oxide ZrO2
号码 55.0010.27
Grinding balls zirconium oxide 1 mm dia. (100 g pack)

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 1 mm dia. are packed in 100 g units and must be weight out. In the selection aid you can find the required mass per grinding bowl.


指示性分析
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
0.5 mm dia. zirconium oxide ZrO2
号码 55.0005.27
Grinding balls zirconium oxide 0.5 mm dia. (100 g pack)

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 0.5 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


指示性分析
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
0.1 mm dia. zirconium oxide ZrO2
号码 55.0001.27
Grinding balls zirconium oxide 0.1 mm dia. (100 g pack)

General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 0.1 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


指示性分析
General specifications
MaterialZirconium oxide ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide - ZrO295%
Yttrium oxide -Y2O35%
Physical and mechanical properties
Density6.0 g/cm³
Hardness Vickers1300 (HV10)


Explanations on hardness data
3 mm dia. hardened, stainless steel - Fe - Cr
号码 55.0030.09
Grinding balls hardened, stainless steel 3 mm dia. (100 g pack)

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Grinding balls made of hardened, stainless steel with 3 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


指示性分析
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
1 mm dia. hardened, stainless steel - Fe - Cr
号码 55.0010.09
Grinding balls hardened, stainless steel 1 mm dia. (100 g pack)

General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Grinding balls made of hardened, stainless steel with 1 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


指示性分析
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
3 mm dia. hardmetal tungsten carbide - WC
号码 55.0030.08
Grinding balls hardmetal tungsten carbide 3 mm dia. (100 g pack)

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Grinding balls made of hardmetal tungsten carbide with 3 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


指示性分析
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data
1.6 mm dia. hardmetal tungsten carbide - WC
号码 55.0016.08
Grinding balls hardmetal tungsten carbide 1.6 mm dia. (100 g pack)

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Grinding balls made of hardmetal tungsten carbide with 1.6 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


指示性分析
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data
0.6 mm dia. hardmetal tungsten carbide - WC
号码 55.0006.08
Grinding balls hardmetal tungsten carbide 0.6 mm dia. (100 g pack)

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Grinding balls made of hardmetal tungsten carbide with 0.6 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.


指示性分析
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data

Certification

IQ/OQ documentation for the independent utilization for the support of instrument qualification in the quality management system for the Planetary Micro Mill PULVERISETTE 7 classic line.

Select certification

Certification

IQ/OQ documentation (questionnaire format -implementation by customer)
号码 96.0280.00
IQ/OQ documentation (questionnaire format - implementation by customer)

IQ/OQ documentation (questionnaire format - implementation by customer) for the independent utilization for the support of instrument qualification in the quality management system for the Planetary Micro Mill PULVERISETTE 7 classic line.


订货号
07.4000.00
Benjamin Gagel
FRITSCH GmbH - Milling and Sizing
Industriestrasse 8
55743 Idar-Oberstein
电话 +49 67 84 70 0

研磨报告数据库

现在就来测试

免费试研磨

请您将样品寄给我们,我们将进行试研磨 - 您会得到一份相应的研磨报告。
