Vibrating Cup Mill

PULVERISETTE 9

订货号
09.5000.00
配件

Please note: The standard equipment delivered with the Vibrating Cup Mill PULVERISETTE 9 does not include grinding sets. Grinding sets are offered in 5 different materials and 3 different sizes from 50 ml to 250 ml volume and must be ordered as accessories.

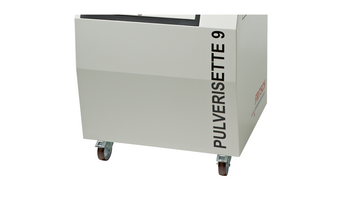

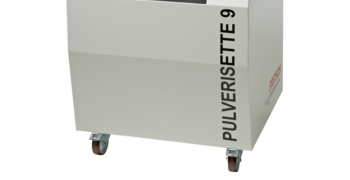

FRITSCH also supplies practical, heavy-duty wheels with an arresting brake for the PULVERISETTE 9.

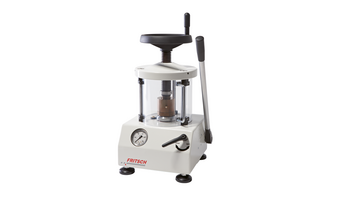

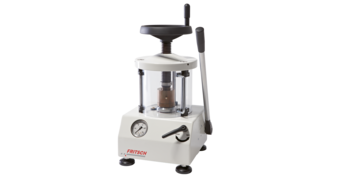

Also available is a practical, manually-operated hydraulic Pellet Press with a pressure force of 250 kN.

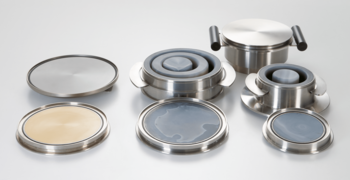

Grinding Sets

选项帮助

  • Grinding Media and Volumes

    Volume Useful capacity (sample volume) Grinding parts
    50 ml 10 - 50 ml 1 puck
    100 ml 30 - 100 ml 1 puck + 1 ring
    250 ml 75 - 250 ml 1 puck + 1 ring
  • Material data for the grinding sets

    Material Main component of the material Density g/cm³ Abrasion resistance Used for grinding material
    Hardened stainless steel Fe – Cr 7.7 Good Brittle, hard samples
    Chromium-free tool steel Fe 7.8 Fairly good Brittle, hard samples
    Hardmetal tungsten carbide WC 14.3 Very good Very hard, abrasive samples
    Agate SiO2 2.65 Good Soft to medium-hard, brittle, fibrous samples
    Zirconium oxide ZrO2 5.7 Good Medium-hard, brittle, fibrous samples, metal-free grinding

Please select at least one grinding set. Grinding sets in 5 different materials and 3 different sizes from 50 ml to 250 ml volume are available. The grinding set material must also be harder than the material to be ground.

SELECT A GRINDING SET

GRINDING SETS

hardened, stainless steel - Fe - Cr - useful volume 250 ml
号码 48.5125.00

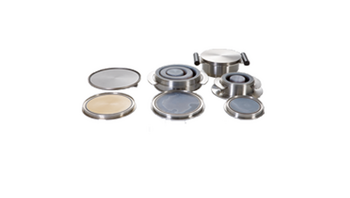

Grinding set hardened, stainless steel, useful volume 250 ml

For the comminution of brittle, hard samples.
General material specification:
Material: hardened, stainless steel - 1.4125
Abrasion resistance: good
Suitable for: brittle, hard samples
Detailed information about the material you will find in the element analysis.


Our suggestion: Grinding sets with high density, e.g. hardened, stainless steel or tungsten carbide, shorten the grinding time.


指示性分析
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardened, stainless steel - Fe - Cr - useful volume 100 ml
号码 48.5110.00
Grinding set hardened, stainless steel, useful volume 100 ml

For the comminution of brittle, hard samples.
General material specification:
Material: hardened, stainless steel - 1.4125
Abrasion resistance: good
Suitable for: brittle, hard samples
Detailed information about the material you will find in the element analysis.


Our suggestion: Grinding sets with high density, e.g. hardened, stainless steel or tungsten carbide, shorten the grinding time.


指示性分析
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
hardened, stainless steel - Fe - Cr - useful volume 50 ml
号码 48.5105.00
Grinding set hardened, stainless steel, useful volume 50 ml

For the comminution of brittle, hard samples.
General material specification:
Material: hardened, stainless steel - 1.4125
Abrasion resistance: good
Suitable for: brittle, hard samples
Detailed information about the material you will find in the element analysis.


Our suggestion: Grinding sets with high density, e.g. hardened, stainless steel or tungsten carbide, shorten the grinding time.


指示性分析
General specifications
Materialhardened stainless steel – 1.4125
ISO/EN/DIN codeX105CrMo17
Chemical composition
ElementShare %
Iron– Fe81.4
Chromium – Cr17
Carbon – C1.1
Molybdenum – Mo0.5
Physical and mechanical properties
Density 7.7 kg/dm³
Hardness~ 60 HRC


Explanations on hardness data
chromium-free tool steel - Fe - useful volume 250 ml
号码 48.5525.00
Grinding set chromium-free tool steel, useful volume 250 ml

For the comminution of brittle, hard samples


General material specification:
Material: chromium-free tool steel -1.1740
Abrasion resistance: fairly good
Suitable for: brittle, hard samples
Detailed information about the material you will find in the element analysis


Our suggestion: Grinding sets with high density, e.g. tempered steel or tungsten carbide, shorten the grinding time


指示性分析
General specifications
MaterialChromium-free tool steel – 1.1740
ISO/EN/DIN codeC60W3
Chemical composition
ElementShare %
Iron – Fe98.63 – 98.08
Carbon – C0.55 – 0.65
Silicon – Si0.15 – 0.4
Manganese – Mn0.6 – 0.8
Phosphorus – P< 0.035
Sulphur – S< 0.035
Physical and mechanical properties
Density7.8 g/cm³
Hardness50 - 55 HRC


Explanations on hardness data
chromium-free tool steel - Fe - useful volume 100 ml
号码 48.5510.00
Grinding set chromium-free tool steel, useful volume 100 ml

For the comminution of brittle, hard samples


General material specification:
Material: chromium-free tool steel -  1.1740
Abrasion resistance: fairly good
Suitable for: brittle, hard samples
Detailed information about the material you will find in the element analysis


Our suggestion: Grinding sets with high density, e.g. tempered steel or tungsten carbide, shorten the grinding time.


指示性分析
General specifications
MaterialChromium-free tool steel – 1.1740
ISO/EN/DIN codeC60W3
Chemical composition
ElementShare %
Iron – Fe98.63 – 98.08
Carbon – C0.55 – 0.65
Silicon – Si0.15 – 0.4
Manganese – Mn0.6 – 0.8
Phosphorus – P< 0.035
Sulphur – S< 0.035
Physical and mechanical properties
Density7.8 g/cm³
Hardness50 - 55 HRC


Explanations on hardness data
chromium-free tool steel - Fe - useful volume 50 ml
号码 48.5505.00
Grinding set chromium-free tool steel, useful volume 50 ml

For the comminution of brittle, hard samples


General material specification:
Material: chromium-free tool steel -  1.1740
Abrasion resistance: fairly good
Suitable for: brittle, hard samples
Detailed information about the material you will find in the element analysis


Our suggestion: Grinding sets with high density, e.g. tempered steel or tungsten carbide, shorten the grinding time.


指示性分析
General specifications
MaterialChromium-free tool steel – 1.1740
ISO/EN/DIN codeC60W3
Chemical composition
ElementShare %
Iron – Fe98.63 – 98.08
Carbon – C0.55 – 0.65
Silicon – Si0.15 – 0.4
Manganese – Mn0.6 – 0.8
Phosphorus – P< 0.035
Sulphur – S< 0.035
Physical and mechanical properties
Density7.8 g/cm³
Hardness50 - 55 HRC


Explanations on hardness data
hardmetal tungsten carbide - WC - useful volume 250 ml
号码 48.5225.00
Grinding set hardmetal tungsten carbide, useful volume 250 ml

For the comminution of very hard, abrasive  samples

General material specification:
Material:hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: very hard, abrasive samples
Detailed information about the material you will find in the element analysis.


Our suggestion: Grinding sets with high density, e.g. tempered steel or tungsten carbide, shorten the grinding time.


指示性分析
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data
hardmetal tungsten carbide - WC - useful volume 100 ml
号码 48.5210.00
Grinding set hardmetal tungsten carbide, useful volume 100 ml

For the comminution of very hard, abrasive  samples


General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: very hard, abrasive samples
Detailed information about the material you will find in the element analysis.


Our suggestion: Grinding sets with high density, e.g. tempered steel or tungsten carbide, shorten the grinding time.



指示性分析
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data
hardmetal tungsten carbide - WC - useful volume 50 ml
号码 48.5205.00
Grinding set hardmetal tungsten carbide, useful volume 50 ml

For the comminution of very hard, abrasive  samples

General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: very hard, abrasive samples
Detailed information about the material you will find in the element analysis.


Our suggestion: Grinding sets with high density, e.g. tempered steel or tungsten carbide, shorten the grinding time.


指示性分析
General specifications
MaterialTungsten carbide - WC
ISO/EN/DIN code
Chemical composition
ElementShare %
Tungsten carbide – TC88
Cobalt – Co 12
Physical and mechanical properties
Density14.3 g/cm³
Hardness89.7 HRA


Explanations on hardness data
agate - SiO2 - useful volume 100 ml
号码 48.5310.00
Grinding set agate, useful volume 100 ml

for comminution of soft to medium-hard, brittle, fibrous samples

General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft, medium-hard, brittle, fibrous samples
Detailed information about the material you will find in the element analysis.


Our suggestion: Grinding sets with high density, e.g. tempered steel or tungsten carbide, shorten the grinding time.


指示性分析
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
agate - SiO2 - useful volume 50 ml
号码 48.5305.00
Grinding set agate, useful volume 50 ml

for comminution of soft to medium-hard, brittle, fibrous samples


General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft, medium-hard, brittle, fibrous samples
Detailed information about the material you will find in the element analysis.


Our suggestion: Grinding sets with high density, e.g. tempered steel or tungsten carbide, shorten the grinding time.


指示性分析
General specifications
MaterialAgate – SiO2
Chemical composition
ElementShare %
Silicon oxide– SiO299.9
Aluminium – Al2O3< 0.02
Iron oxide – Fe2O3< 0.02
Calcium oxide – CaO< 0.02
Magnesium oxide – MgO< 0.02
Sodium oxide – Na2O< 0.02
Potassium oxide – K2O< 0.02
Manganese oxide – MnO< 0.02
Physical and mechanical properties
Density2.65 g/cm³
Hardness6.5 – 7 Mohs


Explanations on hardness data
zirconium oxide - ZrO2 -, useful volume 100 ml
号码 48.5410.00
Grinding set zirconium oxide, useful volume 100 ml

for comminution of medium-hard, brittle, fibrous samples and for metal-free grinding


General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: good
Suitable for: medium-hard, brittle, fibrous samples,  metal-free grinding
Detailed information about the material you will find in the element analysis.


Grinding sets of zirconium oxide are only suitable for grinding ceramic materials, minerals etc and never for hard-tough samples, such as metals.


Our suggestion: Grinding sets with high density, e.g. tempered steel or tungsten carbide, shorten the grinding time.


指示性分析
General specifications
MaterialZirconium oxide – ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.5
Yttrium oxide – Y2O35.1
SiO2, CaO, MgO, Al2O3< 0.4
Physical and mechanical properties
Density6.0 g/cm³
Hardness12.5 x 10³ Nmm-² HV


Explanations on hardness data
zirconium oxide - ZrO2 -, useful volume 50 ml
号码 48.5405.00
Grinding set zirconium oxide, useful volume 50 ml

for comminution of medium-hard, brittle, fibrous samples and for metal-free grinding


General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: good
Suitable for: medium-hard, brittle, fibrous samples, for metal-free grinding
Detailed information about the material you will find in the element analysis.


Grinding sets of zirconium oxide are only suitable for grinding ceramic materials, minerals etc. and never for hard-tough samples, such as metals.


Our suggestion: Grinding sets with high density, e.g. tempered steel or tungsten carbide, shorten the grinding time.


指示性分析
General specifications
MaterialZirconium oxide – ZrO2
ISO/EN/DIN code
Chemical composition
ElementShare %
Zirconium oxide – ZrO294.5
Yttrium oxide – Y2O35.1
SiO2, CaO, MgO, Al2O3< 0.4
Physical and mechanical properties
Density6.0 g/cm³
Hardness12.5 x 10³ Nmm-² HV


Explanations on hardness data

FURTHER ACCESSORIES

The practical heavy-duty wheels make your PULVERISETTE 9. Also available is a certification for your Vibrating Cup Mill.

Select further Accessories

Wheels for Vibrating Cup Mill

wheels for Vibrating Cup Mill
号码 93.4365.00
Wheels for Vibrating Cup Mill

Go mobile with the Vibrating Cup Mill: Order
- robust wheels with arresting brake for your Vibrating Cup Mill
- 1 Set includes 4 heavy-duty wheels, 2 with arresting brake


Certification

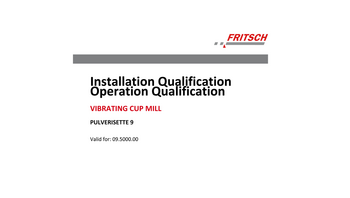

IQ/OQ documentation (questionnaire format - implementation by customer)
号码 96.0300.00
IQ/OQ documentation (questionnaire format - implementation by customer)

IQ/OQ documentation (questionnaire format - implementation by customer) for the independent utilization for the support of instrument qualification in the quality management system for the Vibrating Cup Mill PULVERISETTE 9.


Pellet Press

Ideal for high-quality pellets. The FRITSCH Pellet Press is ideal for fast and easy preparation of both: solid and highly permeable pellets of solid samples for X-ray fluorescence analysis or infrared spectroscopy.

SELECT PELLET PRESS AND PRESSING TOOLS

PELLET PRESS - manual instrument without pressing tool

pellet press - hydraulic, manual, pressure force 250 kN
号码 09.9502.00
Pellet Press - hydraulic, manual, pressure force 250 kN

Ideal for high-quality pellets

The manually-operated hydraulic FRITSCH Pellet Press is ideal for fast and easy preparation of both: solid and highly permeable pellets of solid samples for X-ray fluorescence analysis or infrared spectroscopy. It's as easy as this: Fill in the sample, close the magnetically-held door and build-up the desired pressure using the hand lever - that's it. The pressure force is variable up to max. 250 kN and is automatically relieved in case of overstress. If your pellets require binding agents for stabilisation, please contact us and we will be happy to assist.
The pressing tools are not included with the pellet press and have to be ordered separately.


Further pressing tools and automatic pellet presses with a pressure force of 400 kN can be delivered on request.


PRESSING TOOLS for Pellet Press 09.9510.00

pressing tool for pellets with 40 mm diameter
号码 09.9610.00

Pressing tool for pellets with 40 mm diameter:
If your pellets require binding agents for stabilisation, please contact us and we will be happy to assist.


Further pressing tools on request!


pressing tool for pellets with 32 mm diameter
号码 09.9600.00

Pressing tool for pellets with 32 mm diameter.
If your pellets require binding agents for stabilisation, please contact us and we will be happy to assist.


Further pressing tools on request!


订货号
09.5000.00
Jessica Seifert
FRITSCH GmbH - Milling and Sizing
Industriestrasse 8
55743 Idar-Oberstein
电话 +49 67 84 70 0

研磨报告数据库

现在就来测试

免费试研磨

请您将样品寄给我们,我们将进行试研磨 - 您会得到一份相应的研磨报告。
