Cross Beater Mill
PULVERISETTE 16
The Cross Beater Mill PULVERISETTE 16 is available in different material configurations.
Regardless of the material variant selected, the PULVERISETTE 16 is delivered with a stainless steel 5 litre collecting vessel with filter hose and a bayonet lock that ensures an especially convenient and dust-free connection. The bottom sieve must be ordered separately.
The PULVERISETTE 16 can be combined with the high-performance cyclone for sample exhaustion and a 26 litre collecting vessel with filter hose is also available for larger quantities.
Please choose from our extensive accessories at least a material configuration exactly to your specific application as well as a bottom sieve.
Cross Beater Mill PULVERISETTE 16 - material configuration
-
Material data Cross Beater Mill P-16 and application recommendation
Instrument variant Material Main component of material Abrasion resistance Density g/cm³ Suitable for comminution of Grinding insert and cross beater made of cast iron and impact plates made of hardened steel
order no. 16.6020.00Cast iron
Hardened steelFe - C
Fe - Crfairly good
good7.1
7.6medium-hard, brittle samples Grinding insert and impact plates made of hardened steel and a cross beater made of cast iron
order no. 16.6030.00Hardened steel-grinding insert
Hardened steel-impact plates
Cast ironFe - Cr
Fe - Cr
Fe - Cvery good
good
fairly good7.7
7.6
7.1hard and abrasive samples Grinding insert, cross beater and impact plates made of stainless steel
order no. 16.6050.00Stainless steel-grinding insert/cross beater
Stainless steel-impact platesFe - Cr fairly good 7.9
7.7applications in chemistry Impact plates made of heavy metal-free C60W steel, grinding insert and impact plates made of cast iron – for heavy metal-free grinding - on request
The Cross Beater Mill PULVERISETTE 16 is available in different material configurations.
Find the perfect version for your specific application.
Instrument without bottom sieve and stand, incl. collecting vessel 5 litres with filter hose
Ideal for all standard applications

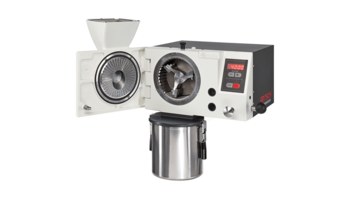

This Cross Beater Mill P-16 consists of grinding insert and cross beater made of cast iron and impact plates made of hardened steel.
element analysis
The PULVERISETTE 16 is delivered with a stainless steel 5 litre collecting vessel with filter hose and a bayonet lock that ensures an especially convenient and dust-free connection. At least one bottom sieve must be ordered separately.
DETAILED INFORMATION ON THE CROSS BEATER MILL P-16
Ideal for hard and abrasive materials
This Cross Beater Mill P-16 consists of grinding insert and impact plates made of hardened steel and a cross beater made of cast iron.
element analysis
The PULVERISETTE 16 is delivered with a stainless steel 5 litre collecting vessel with filter hose and a bayonet lock that ensures an especially convenient and dust-free connection. At least one bottom sieve must be ordered separately.
DETAILED INFORMATION ON THE CROSS BEATER MILL P-16
Ideal for special applications in chemistry
This Cross Beater Mill P-16 consists of P-16 with grinding insert, cross beater and impact plates made of stainless steel.
element analysis
The PULVERISETTE 16 is delivered with a stainless steel 5 litre collecting vessel with filter hose and a bayonet lock that ensures an especially convenient and dust-free connection. At least one bottom sieve must be ordered separately.
DETAILED INFORMATION ON THE CROSS BEATER MILL P-16
BOTTOM SIEVES made of stainless steel 316L
For the PULVERISETTE 16 are bottom sieves made of stainless steel either in trapezoidal or round perforations in various sizes available. In general, the finer the desired final fineness, the smaller the perforation of the bottom sieve should be; the larger the perforation, the higher the throughput.
BOTTOM SIEVES MADE OF STAINLESS STEEL 316L
The bottom sieves are made of stainless steel trapezoidal resp. round perforation sheets of metal. Larger openings mean faster throughput, less time in the mill and less wear.
Bottom sieves with trapezoidal perforation offer an improved size reduction through extra shearing action. Bottom sieves with round perforation are recommended for size reduction of brittle material of medium fineness with smaller grain width band.
