Cutting Mill

PULVERISETTE 15

订货号
15.4030.00
配件

Configure your Cutting Mill PULVERISETTE 15 exactly to your specific application.

Please choose from our extensive accessories at least a funnel, cutting tool set, sieve cassette and collection vessel.

Funnel
Funnel for long and bulk solids made of plastic or protected funnel made of stainless steel with plastic sample pusher

Cutting tool sets
Rotor with straight cutting edges and fixed knives made of tool steel or chromium-free tool steel

Sieve inserts
Sieve inserts with trapezoidal or square perforation made stainless steel 316L or chromium-free steel DC01

Collection vessels
Collection vessel 3.5 litres or collection vessel for large quantities 60 litres

Optional accessories
Stand: Universal support stand

FUNNELS

The PULVERISETTE 15 can either be used with a funnel for long and bulk solids made of plastic for feeding materials at their full length or a protected funnel made of stainless steel with a plastic sample pusher for all other materials.

SELECT FUNNEL

FUNNELS

funnel for long- and bulk solids
号码 15.1550.00

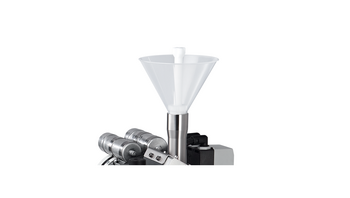

Funnel for long- and bulk solids

With the FRITSCH standard funnel free-flowing bulk solids as well as straw, films or similar materials can be inserted at full length. Both ends of the plunger of the funnel for long and bulk solids can be utilised: the small end for adding of long goods and the wide end for bulk solids.

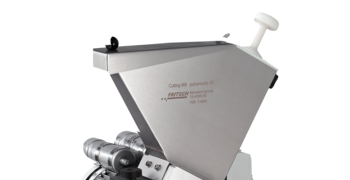

protected funnel with sample pusher
号码 15.4300.00

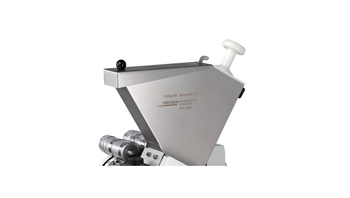

Protected funnel with sample pusher

The protected funnel made of stainless steel with plastic sample pusher enables due to the sample pusher a good handling and an outstanding material feeding.


COLLECTING VESSELS

A collection vessel with 3.5 litres volume is available. For the comminution of larger amounts the collection vessel with 60 litre volume is recommended. p>

SELECT COLLECTING VESSEL

COLLECTING VESSELS

collecting vessel 3.5 litres
号码 15.4400.00

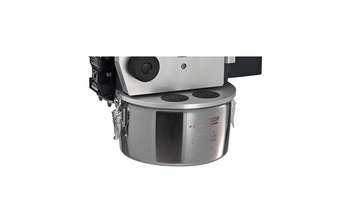

Collecting vessel 3.5 litres

For smaller samples this collecting vessel 3.5 litres is recommended.

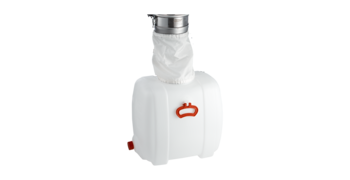

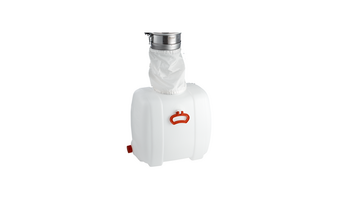

collecting vessel 60 litres with filter hose
号码 15.4560.00
Collecting vessel 60 litres with filter hose

For grinding large quantities this collecting vessel with a capacity of 60 litres and filter hose is recommended.

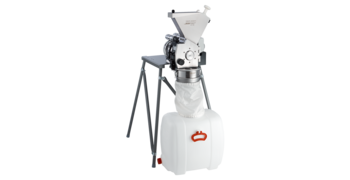

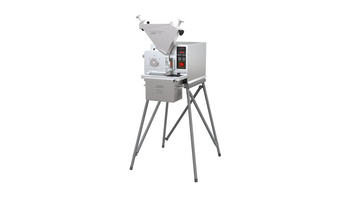

Ideal: The FRITSCH Universal Support Stand offers for your Cutting Mill PULVERISETTE 15 even with the 60 l collecting vessel and filter hose a solid, space-saving and spatially variable basis - order no. 45.5820.00.


CUTTING TOOL SET made of tool steel

选项帮助

  • Material data for cutting tool sets and application recommendation

    Material and rotor type Main component of material Abrasion resistance Density g/cm³ Suitable for comminution of
    tool steel

    Fe - Cr fairly good 7.85
    Rotor with straight cutting edges
    and fixed knives
    order no. 15.4603.00
    medium-hard, brittle samples and easily cut material, such as hay, straw, fibrous or biological materials
    chromium-free tool steel Fe fairly good 7.8
    Rotor with straight cutting edges
    and fixed knives
    order no. 15.4602.00
    especially for sample preparation according to RoHS for example for verification of hexavalent chromium or XRF analysis

The rotor made of tool steel with straight cutting edges which run parallel to the fixed knives is suitable for easily cut material, such as hay, straw, fibrous or biological materials.

SELECT CUTTING TOOL SET

CUTTING TOOL SET MADE OF TOOL STEEL

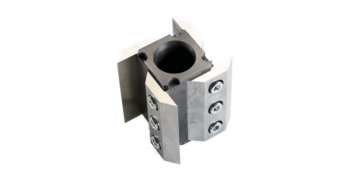

rotor with straight cutting edges and fixed knives
号码 15.4603.00

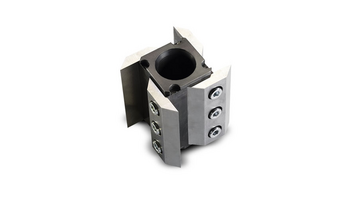

Rotor with straight cutting edges and fixed knives made of tool steel

The rotor with straight cutting edges which run parallel to the fixed knives is especially suitable for easily cuttable materials like hay, straw, fibrous and biological materials. The rotor knives have two cutting edges and can simply be turned when one side is used up. Your advantage: double service life.


For the sample preparation according to RoHS (for the poof of hexavalent chromium) and for the XRF-analysis we recommend our cutting tool sets made of chromium-free tool steel.


指示性分析
1. Rotorknives
General specifications
MaterialTool steel – 1.2379
ISO/EN/DIN codeX155CrVMo12/1 / 59350
Chemical composition
ElementShare %
Iron – Fe85.79 – 82.14
Carbon – C1.45 – 1.6
Silicon – Si0.1 - 0.6
Manganese – Mn0.2 – 0.6
Phosphorus – P0.03
Sulphur – S0.03
Chromium – Cr11 – 13
Molybdenum – Mo0.7 - 1
Tungsten – W0.7 - 1
Physical and mechanical properties
Density 7.85 g/cm³ ;
Hardness58-60 HV


2. Rotor body
General specifications
MaterialConstruction steel – 1.0037 – FeP03
ISO/EN/DIN codeS235 JR
Chemical composition
ElementShare %
Iron – Fe98.34
Carbon – C0.17
Manganese – Mn1.4
Phosphorus – P0.045
Sulphur – S0.045
Chromium – Cr1.660
Physical and mechanical properties
Density7.85 g/cm³
Hardness20-95 HV


Explanations on hardness data

SIEVE INSERTS made of stainless steel 316L

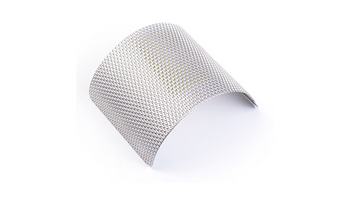

Sieve inserts determine the final fineness of a sample. Sieve inserts with trapezoidal and square perforations are offered. Sieve inserts with trapezoidal perforations improve size reduction through extra shearing action. Sieve inserts with square perforations are used for the grinding of brittle materials and materials of medium fineness with a narrow grain band.
Sieve inserts are also available in further perforations.

SELECT AT LEAST ONE SIEVE INSERT

SIEVE INSERTS MADE OF STAINLESS STEEL 316 L

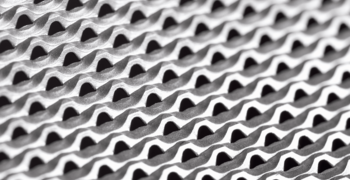

0.5 mm trapezoidal perforation
号码 45.1210.10
Sieve insert 0.5 mm trapezoidal perforation, made of stainless steel 316L

Sieve inserts determine the final fineness of a sample.
Sieve inserts with trapezoidal and square perforations are offered. Sieve inserts with trapezoidal perforations improve size reduction through extra shearing action. Sieve inserts with square perforations are used for the grinding of brittle materials and for achieving medium fineness with a narrow grain band.


For the sample preparation according to RoHS or for verification of hexavalent chromium and for the XRF-analysis, we recommend FRITSCH sieve inserts made of chromium-free steel DC01.


指示性分析
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
0.75 mm trapezoidal perforation
号码 45.1220.10
Sieve insert 0.75 mm trapezoidal perforation, made of stainless steel 316L

Sieve inserts determine the final fineness of a sample.
Sieve inserts with trapezoidal and square perforations are offered. Sieve inserts with trapezoidal perforations improve size reduction through extra shearing action. Sieve inserts with square perforations are used for the grinding of brittle materials and for achieving medium fineness with a narrow grain band.


For the sample preparation according to RoHS or for verification of hexavalent chromium and for the XRF-analysis, we recommend FRITSCH sieve inserts made of chromium-free steel DC01.


指示性分析
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
1 mm trapezoidal perforation
号码 45.1230.10
Sieve insert 1 mm trapezoidal perforation, made of stainless steel 316L

Sieve inserts determine the final fineness of a sample.
Sieve inserts with trapezoidal and square perforations are offered. Sieve inserts with trapezoidal perforations improve size reduction through extra shearing action. Sieve inserts with square perforations are used for the grinding of brittle materials and for achieving medium fineness with a narrow grain band.


For the sample preparation according to RoHS or for verification of hexavalent chromium and for the XRF-analysis, we recommend FRITSCH sieve inserts made of chromium-free steel DC01.


指示性分析
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
1.5 mm trapezoidal perforation
号码 45.1240.10
Sieve insert 1.5 mm trapezoidal perforation, made of stainless steel 316L

Sieve inserts determine the final fineness of a sample.
Sieve inserts with trapezoidal and square perforations are offered. Sieve inserts with trapezoidal perforations improve size reduction through extra shearing action. Sieve inserts with square perforations are used for the grinding of brittle materials and for achieving medium fineness with a narrow grain band.


For the sample preparation according to RoHS or for verification of hexavalent chromium and for the XRF-analysis, we recommend FRITSCH sieve inserts made of chromium-free steel DC01.


指示性分析
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
2 mm trapezoidal perforation
号码 45.1250.10
Sieve insert 2 mm trapezoidal perforation, made of stainless steel 316L

Sieve inserts determine the final fineness of a sample.
Sieve inserts with trapezoidal and square perforations are offered. Sieve inserts with trapezoidal perforations improve size reduction through extra shearing action. Sieve inserts with square perforations are used for the grinding of brittle materials and for achieving of medium fineness with a narrow grain band.


For the sample preparation according to RoHS or for verification of hexavalent chromium and for the XRF-analysis, we recommend FRITSCH sieve inserts made of chromium-free steel DC01.


指示性分析
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data

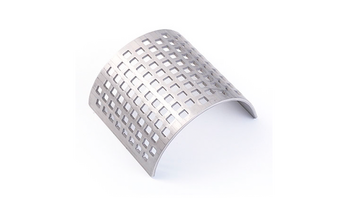

2 mm square perforation
号码 45.2190.10
Sieve insert 2 mm square perforation, made of stainless steel 316L

Sieve inserts determine the final fineness of a sample.


Sieve inserts with trapezoidal and square perforations are offered. Sieve inserts with trapezoidal perforations improve size reduction through extra shearing action. Sieve inserts with square perforations are used for the grinding of brittle materials and for achieving medium fineness with a narrow grain band.


For the sample preparation according to RoHS or for verification of hexavalent chromium and for the XRF-analysis, we recommend FRITSCH sieve inserts made of chromium-free steel DC01.


指示性分析
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
4 mm square perforation
号码 45.2200.10
Sieve insert 4 mm square perforation, made of stainless steel 316L

Sieve inserts determine the final fineness of a sample.
Sieve inserts with trapezoidal and square perforations are offered. Sieve inserts with trapezoidal perforations improve size reduction through extra shearing action. Sieve inserts with square perforations are used for the grinding of brittle materials and for achieving medium fineness with a narrow grain band.


For the sample preparation according to RoHS or for verification of hexavalent chromium and for the XRF-analysis, we recommend FRITSCH sieve inserts made of chromium-free steel DC01.


指示性分析
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
6 mm square perforation
号码 45.2210.10
Sieve insert 6 mm square perforation, made of stainless steel 316L

Sieve inserts determine the final fineness of a sample.
Sieve inserts with trapezoidal and square perforations are offered. Sieve inserts with trapezoidal perforations improve size reduction through extra shearing action. Sieve inserts with square perforations are used for the grinding of brittle materials and for achieving medium fineness with a narrow grain band.


For the sample preparation according to RoHS or for verification of hexavalent chromium and for the XRF-analysis, we recommend FRITSCH sieve inserts made of chromium-free steel DC01.


指示性分析
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
8 mm square perforation
号码 45.2220.10
Sieve insert 8 mm square perforation, made of stainless steel 316L

Sieve inserts determine the final fineness of a sample. Sieve inserts with trapezoidal and square perforations are offered. Sieve inserts with trapezoidal perforations improve size reduction through extra shearing action. Sieve inserts with square perforations are used for the grinding of brittle materials and for achieving medium fineness with a narrow grain band.


For the sample preparation according to RoHS or for verification of hexavalent chromium and for the XRF-analysis, we recommend FRITSCH sieve inserts made of chromium-free steel DC01.


指示性分析
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
10 mm square perforation
号码 45.2230.10
Sieve insert 10 mm square perforation, made of stainless steel 316L

Sieve inserts determine the final fineness of a sample.
Sieve inserts with trapezoidal and square perforations are offered. Sieve inserts with trapezoidal perforations improve size reduction through extra shearing action. Sieve inserts with square perforations are used for the grinding of brittle materials and for achieving medium fineness with a narrow grain band.


For the sample preparation according to RoHS or for verification of hexavalent chromium and for the XRF-analysis, we recommend FRITSCH sieve inserts made of chromium-free steel DC01.


指示性分析
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data
20 mm square perforation
号码 45.2300.10
Sieve insert 20 mm square perforation, made of stainless steel 316L

Sieve inserts determine the final fineness of a sample
Sieve inserts with trapezoidal and square perforations are offered. Sieve inserts with trapezoidal perforations improve size reduction through extra shearing action. Sieve inserts with square perforations are used for the grinding of brittle materials and for achieving medium fineness with a narrow grain band.


For the sample preparation according to RoHS or for verification of hexavalent chromium and for the XRF-analysis, we recommend FRITSCH sieve inserts made of chromium-free steel DC01.


指示性分析
General specifications
MaterialStainless steel – 1.4404/316L
ISO/EN/DIN codeX2CrNiMo17-12-2
Chemical composition
ElementShare %
Iron – Feapprox. 62.8
Carbon – C0.03
Silicon – Si1
Manganese – Mn2
Phosphorus – P0.045
Sulphur – S0.015
Chromium – Cr18.5
Molybdenum – Mo2.50
Nickel – Ni13.00
Nitrogen – N0.110
Physical and mechanical properties
Density8.0 g/cm³
Hardness215 HB



Explanations on hardness data

ACCESSORIES FOR CHROMIUM-FREE COMMINUTION

When chromium-free size reduction is required for sample preparation according to RoHS – for example for verification of hexavalent chromium – or for XRF analysis, FRITSCH cutting tool sets of chromium-free tool steel and sieve inserts made of chromium-free steel DC01 offer absolute assurance.

SELECT CUTTING TOOL SET AND SIEVE INSERT

CUTTING TOOL SET MADE OF CHROMIUM-FREE TOOL STEEL

rotor with straight cutting edges and fixed knives
号码 15.4602.00
Rotor with straight cutting edges and fixed knives made of chromium-free tool steel

The rotors made of chromium-free tool steel are especially recommended for the sample preparation according to RoHS and for the XRF-analysis. If a chromium-free size reduction is required for sample preparation according to RoHS – for example for verification of hexavalent chromium – or for XRF analysis, FRITSCH cutting tool sets of chromium-free tool steel offer this absolute assurance. Because for FRITSCH Cutting Mills, the fixed knives are always of the same material as the cutting edges of the rotor.
The chromium-free tool steel rotor with straight cutting edges which run parallel to the fixed knives is suitable for easily cut material, such as hay, straw, fibrous or biological materials.
The rotor knives can be turned, since they have two cutting edges. Your advantage: doubling the service life of the rotor knives.
For all other applications the rotor of tool steel can be used, because of its hardness and top resistance against abrasion.


指示性分析
1. Rotor knives
General specifications
MaterialChromium-free tool steel – 1.1740
ISO/EN/DIN codeC60W3
Chemical composition
ElementShare %
Iron – Fe98.63 – 98.08
Carbon – C0.55 – 0.65
Silicon – Si0.15 – 0.4
Manganese – Mn0.6 – 0.8
Phosphorus – P< 0.035
Sulphur – S< 0.035
Physical and mechanical properties
Density7.8 g/cm³
Hardness50 - 55 HRC


2. Rotor body
General specifications
MaterialConstruction steel – 1.0037
ISO/EN/DIN codeS235- JR formerly St 37
Chemical composition
ElementShare %
Iron – Fe98.34
Carbon – C0.17
Silicon – Si0.3
Manganese – Mn1.4
Phosphorus – P0.045
Sulphur – S0.045
Physical and mechanical properties
Density 7.85 g/cm³
Hardness ~ 65 HRA


Explanations on hardness data

SIEVE INSERTS MADE OF CHROMIUM-FREE STEEL DC 01

0.5 mm trapezoidal perforation
号码 45.1211.09
Sieve insert 0.5 mm trapezoidal perforation made of chromium-free steel DC01

The sieve inserts made of chromium-free steel DC01 are especially recommended for the sample preparation according to RoHS or for verification of hexavalent chromium and for the XRF- analysis. For all other applications sieve inserts made of stainless steel may be used since these are harder and more resilient against abrasion.
Sieve inserts determine the fineness of a sample.
Sieve inserts with trapezoidal and square perforations are offered. Sieve inserts with trapezoidal perforations improve size reduction through extra shearing action. Sieve inserts with square perforations are used for the grinding of brittle materials and materials of medium fineness with a narrow grain band.


指示性分析
General specifications
MaterialConstruction steel - 1.0330 - not rust-proof
ISO/EN/DIN codeDC01, EN 1013
Chemical composition
ElementShare %
Iron – Fe99.19
Carbon – C0.12
Manganese – Mn0.6
Phosphorus – P0.045
Sulphur – S0.045
Physical and mechanical properties
Density7.85 g/cm³
Hardness86 HRA


Explanations on hardness data
1 mm trapezoidal perforation
号码 45.1230.09
Sieve insert 1 mm trapezoidal perforation made of chromium-free steel DC01

The sieve inserts made of chromium-free steel DC01 are especially recommended for the sample preparation according to RoHS or for verification of hexavalent chromium and for the XRF- analysis. For all other applications sieve inserts made of stainless steel may be used since these are harder and more resilient against abrasion.
Sieve inserts determine the fineness of a sample.
Sieve inserts with trapezoidal and square perforations are offered. Sieve inserts with trapezoidal perforations improve size reduction through extra shearing action. Sieve inserts with square perforations are used for the grinding of brittle materials and materials of medium fineness with a narrow grain band.


指示性分析
General specifications
MaterialConstruction steel - 1.0330 - not rust-proof
ISO/EN/DIN codeDC01, EN 1013
Chemical composition
ElementShare %
Iron – Fe99.19
Carbon – C0.12
Manganese – Mn0.6
Phosphorus – P0.045
Sulphur – S0.045
Physical and mechanical properties
Density7.85 g/cm³
Hardness86 HRA


Explanations on hardness data
4 mm square perforation
号码 45.2200.09
Sieve insert 4 mm square perforation made of chromium-free steel DC01

The sieve inserts made of chromium-free steel DC01 are especially recommended for the sample preparation according to RoHS or for verification of hexavalent chromium and for the XRF- analysis. For all other applications sieve inserts made of stainless steel may be used since these are harder and more resilient against abrasion.
Sieve inserts determine the fineness of a sample.
Sieve inserts with trapezoidal and square perforations are offered. Sieve inserts with trapezoidal perforations improve size reduction through extra shearing action. Sieve inserts with square perforations are used for the grinding of brittle materials and materials of medium fineness with a narrow grain band.


指示性分析
General specifications
MaterialConstruction steel - 1.0330 - not rust-proof
ISO/EN/DIN codeDC01, EN 1013
Chemical composition
ElementShare %
Iron – Fe99.19
Carbon – C0.12
Manganese – Mn0.6
Phosphorus – P0.045
Sulphur – S0.045
Physical and mechanical properties
Density7.85 g/cm³
Hardness86 HRA


Explanations on hardness data

STAND

The FRITSCH Universal-Support Stand offers for the mill a solid, space-saving and spatially variable basis.





SELECT UNIVERSAL SUPPORT STAND

CERTIFICATION

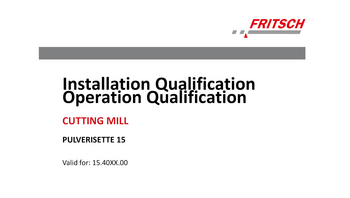

IQ/OQ documentation (questionnaire format - implementation by customer)
号码 96.0400.00
IQ/OQ documentation (questionnaire format - implementation by customer)

IQ/OQ documentation (questionnaire format - implementation by customer) for the independent utilization for the support of instrument qualification in the quality management system for the Cutting Mill PULVERISETTE 15.


订货号
15.4030.00
Jessica Seifert
FRITSCH GmbH - Milling and Sizing
Industriestrasse 8
55743 Idar-Oberstein
电话 +49 67 84 70 0

研磨报告数据库

现在就来测试

免费试研磨

请您将样品寄给我们,我们将进行试研磨 - 您会得到一份相应的研磨报告。
